833 BRYANT ST MODULAR ISSUES

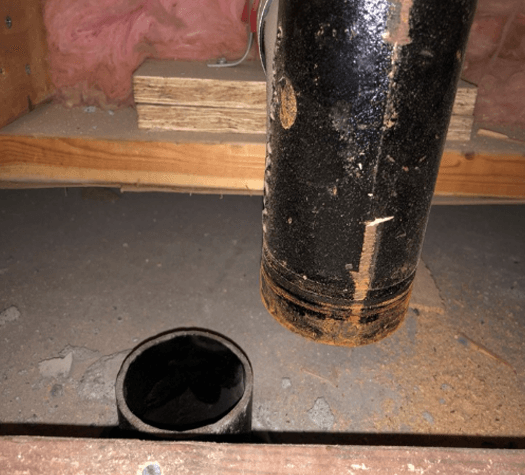

Issue:

Factory installed sanitary tee does

not align with the deck penetrations.

Why It Matters:

Off both vertically and horizontally.

Issue:

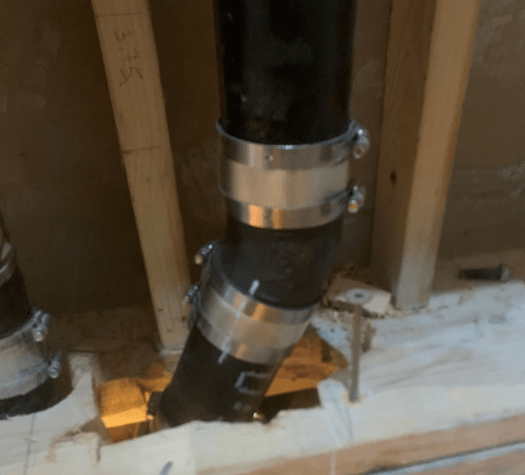

Multiple installed sanitary tees do not align with the deck penetrations.

Why It Matters:

Offsets and a pup piece was added and penetration also required work.

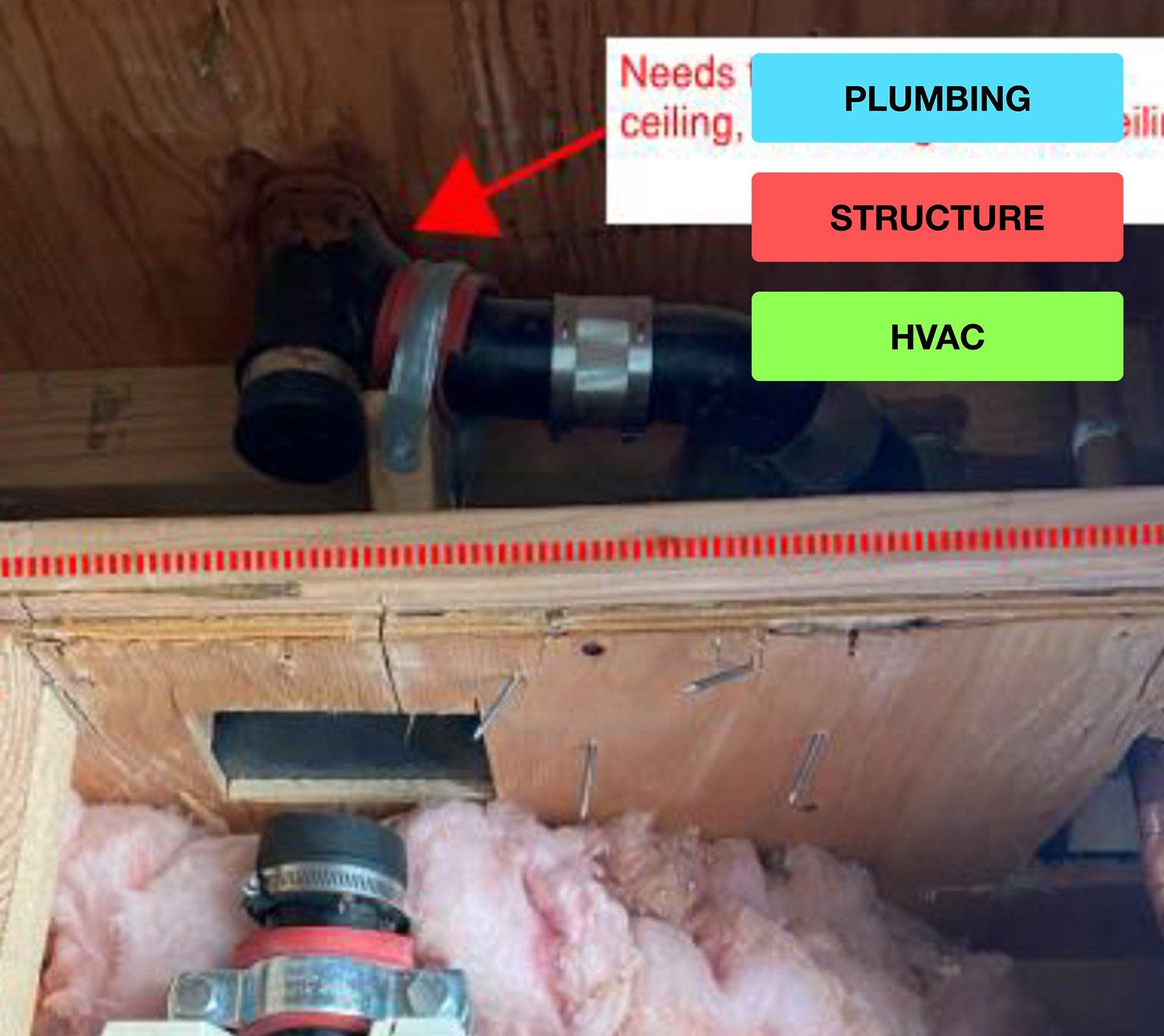

Issue:

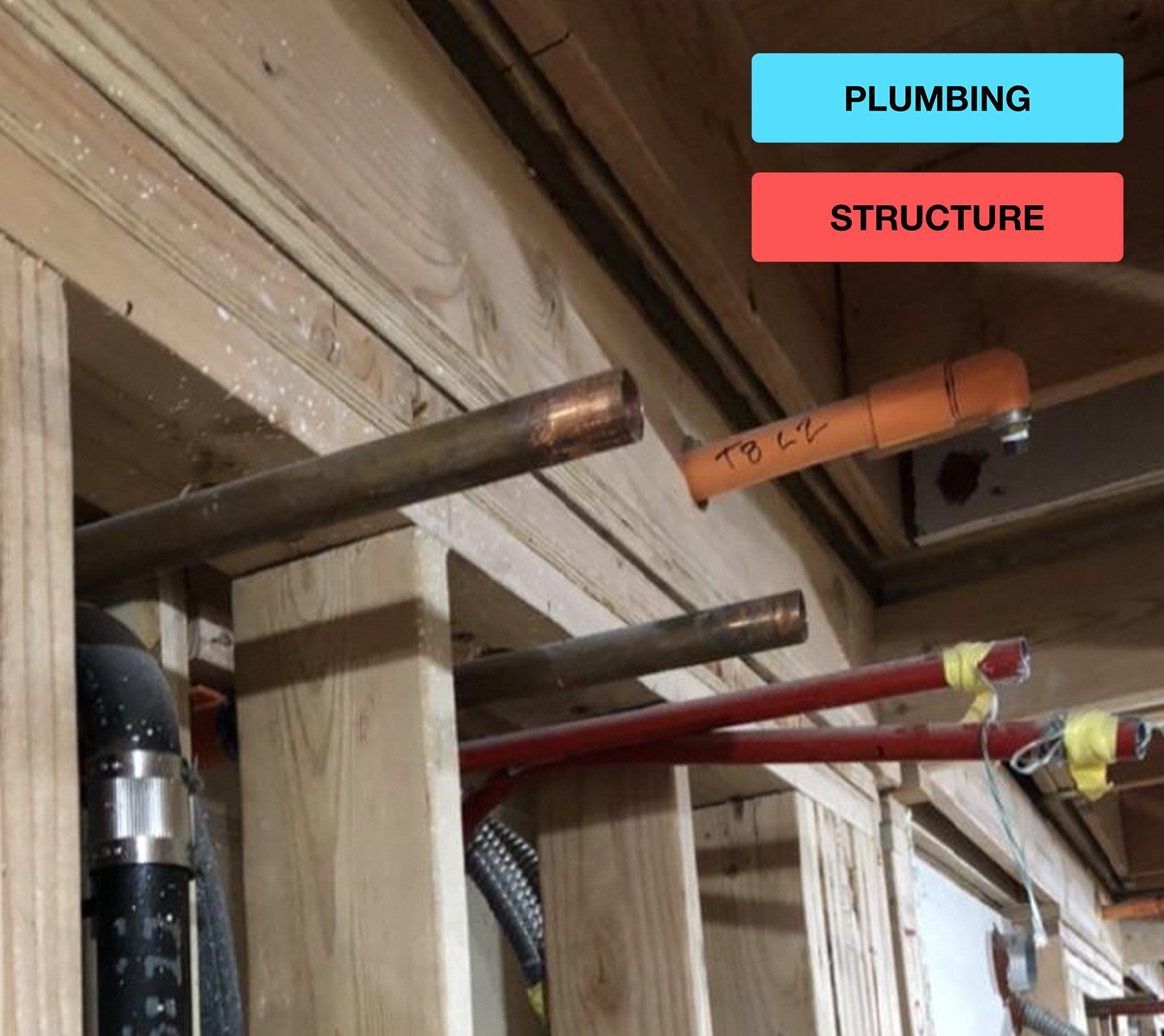

Stub outs are too close to the ceiling.

Why It Matters:

Vents cannot be attached.

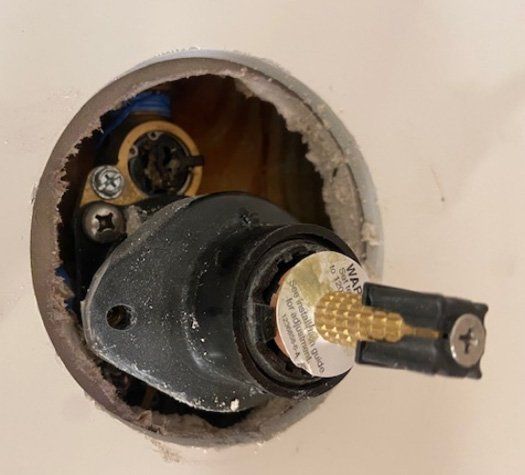

Issue:

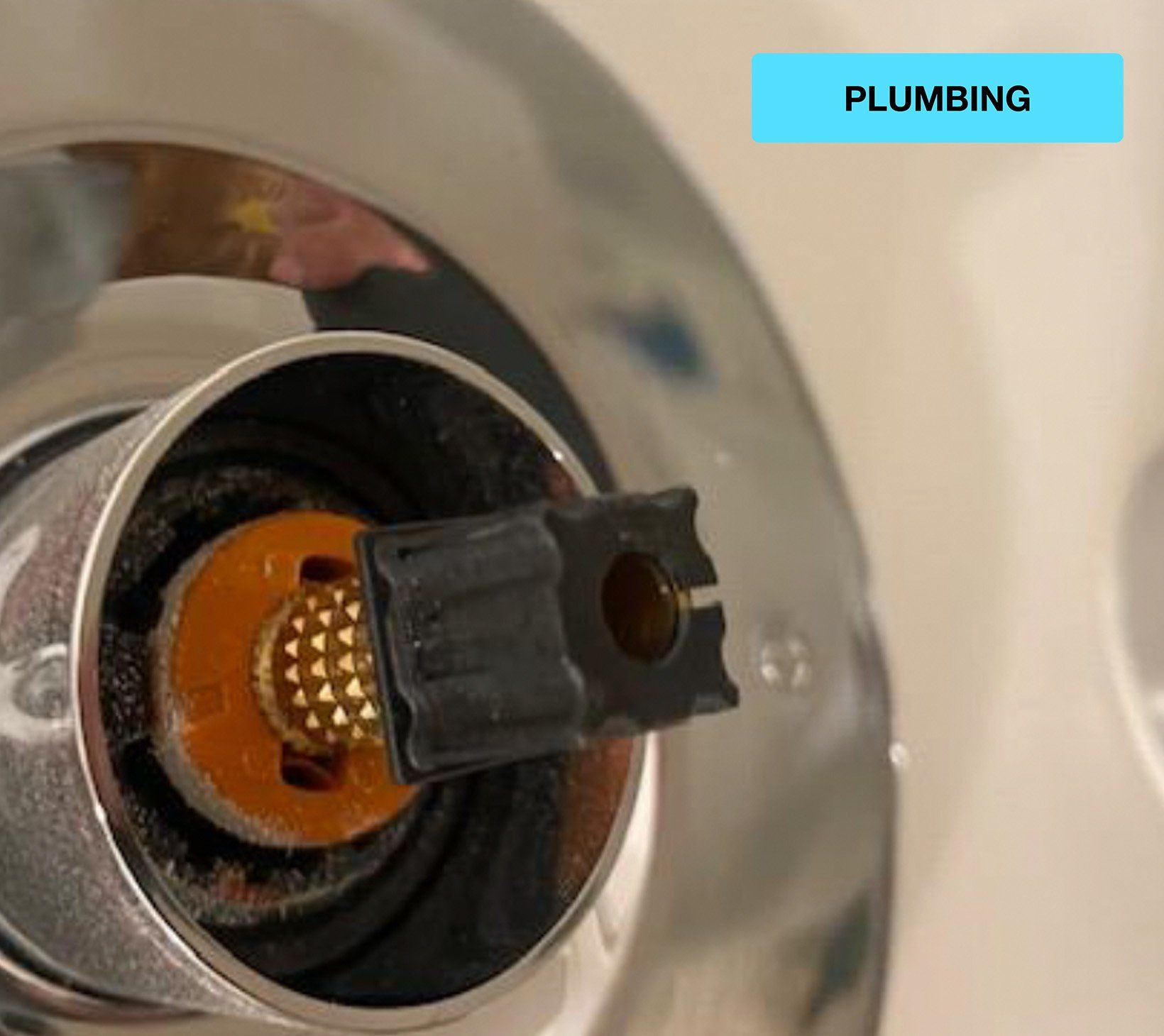

Shower value not centered with the hole in the wall.

Why It Matters:

A larger plate than anticipated is needed to cover the addition space.

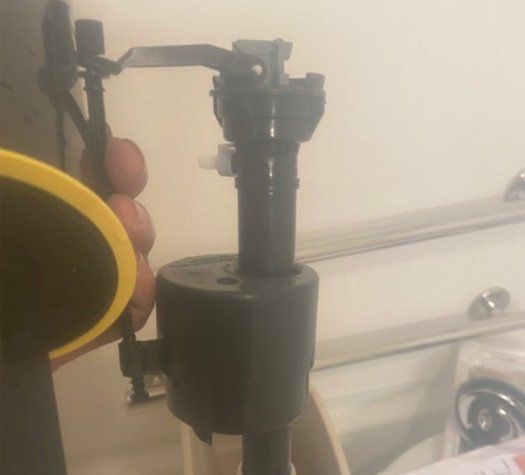

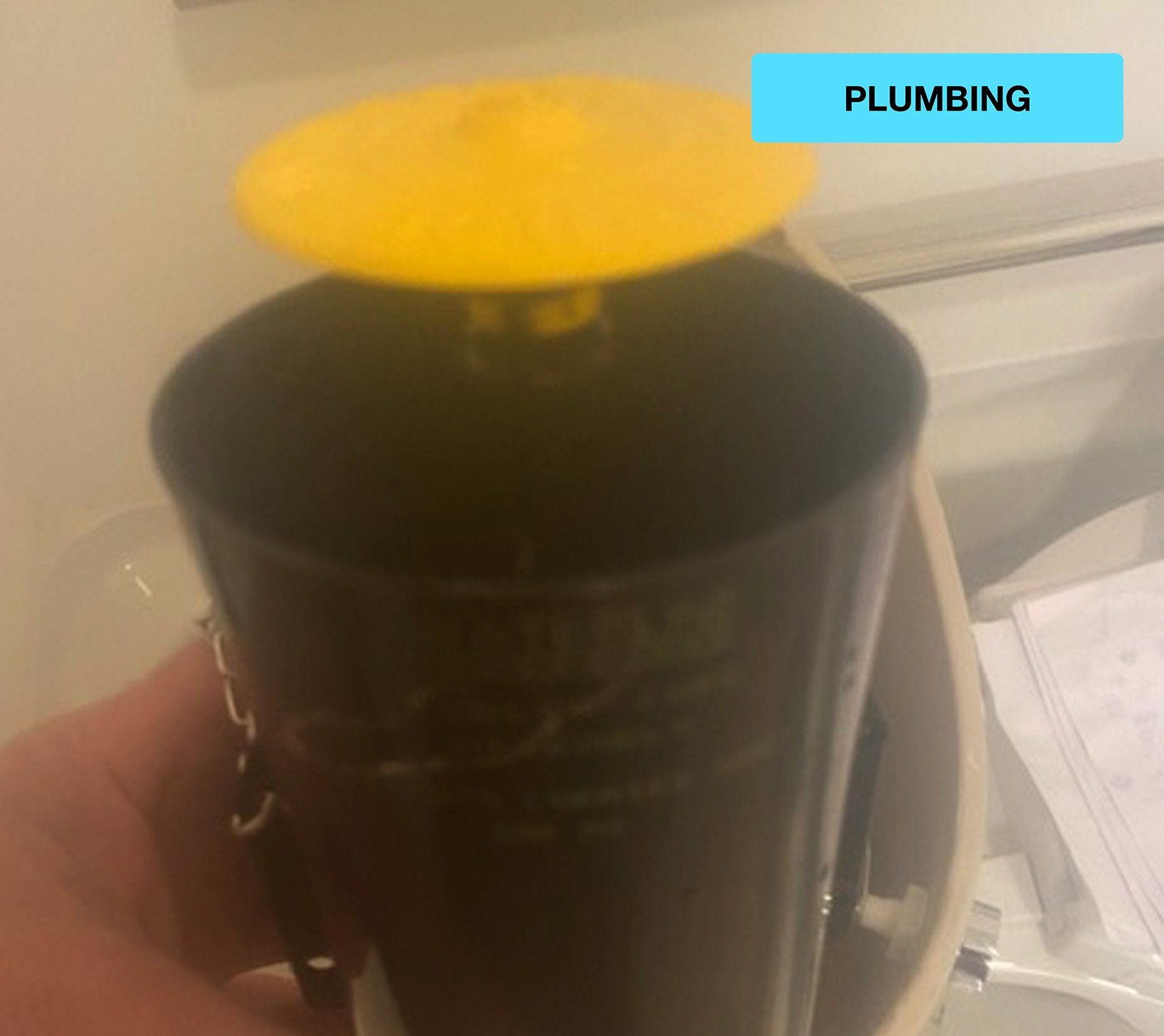

Issue:

All water closets had the float incorrectly positioned.

Why It Matters:

Each one had to be corrected onsite.

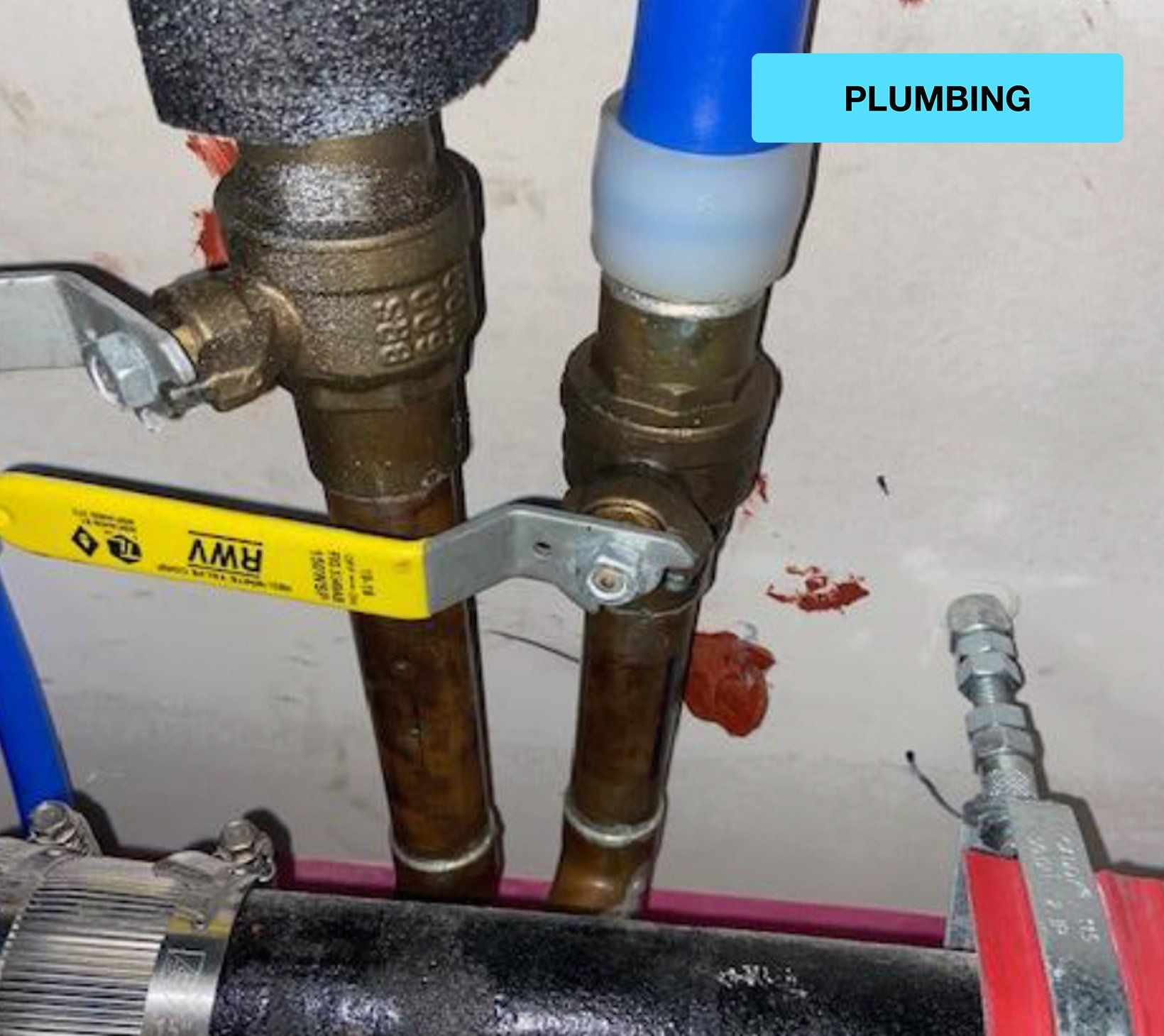

Issue:

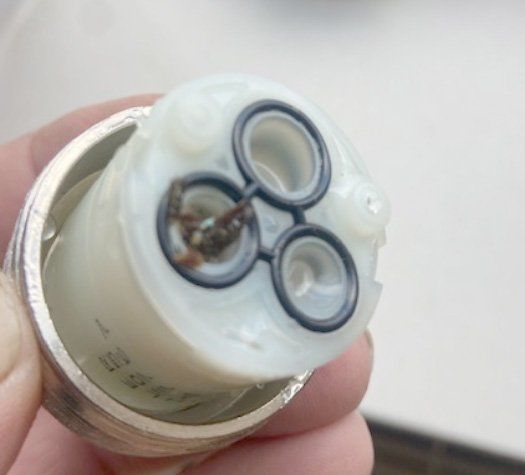

Wood debris throughout the supply lines across units.

Why It Matters:

Caused blockage in all shower valves and had to be flushed onsite.

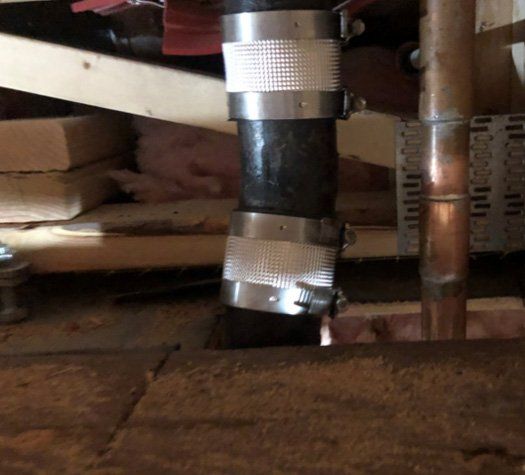

Issue:

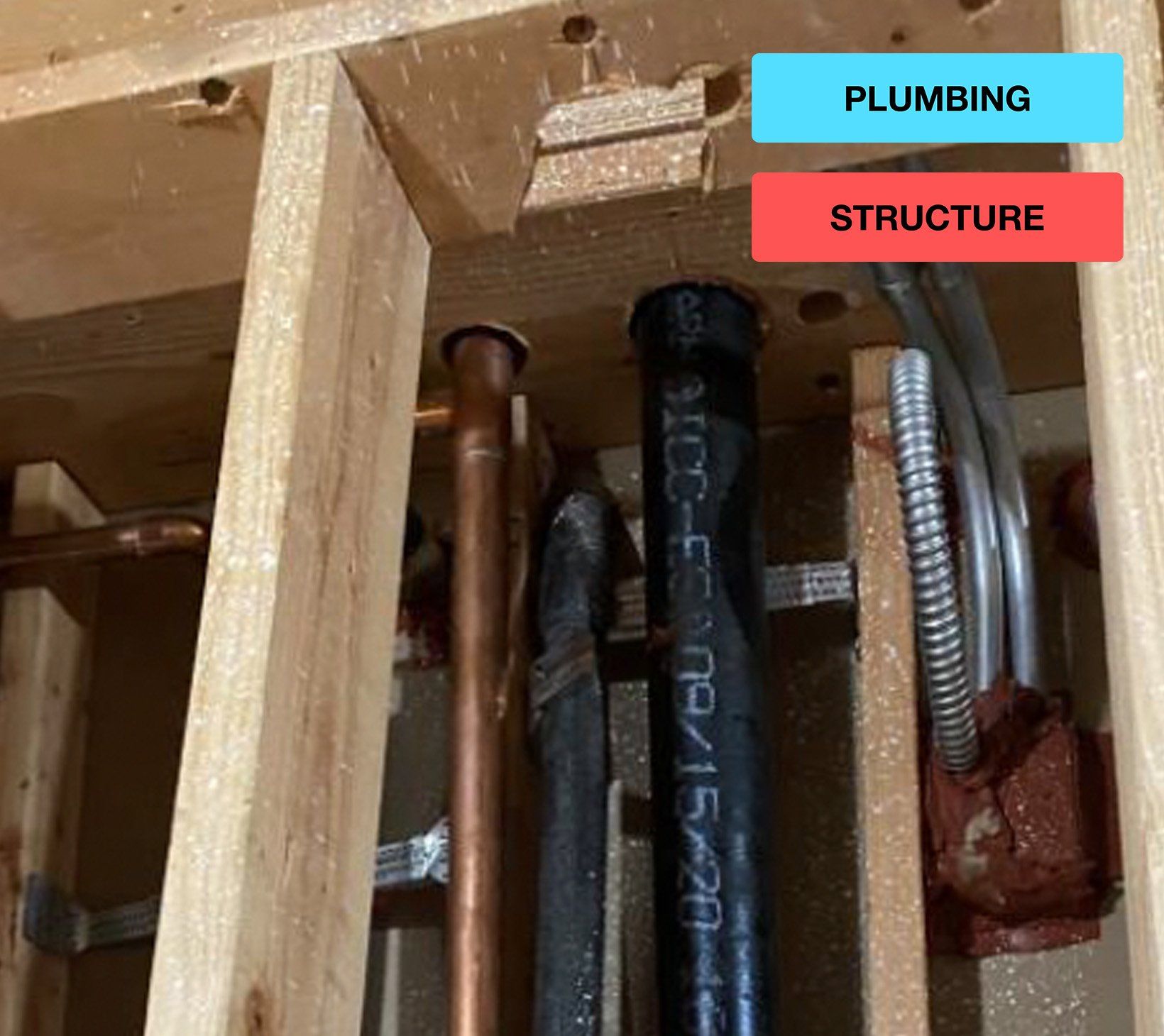

Vents & condensate risers were not long enough to connect to above unit.

Why It Matters:

Additional offsets and fittings were required to connect to above unit.
